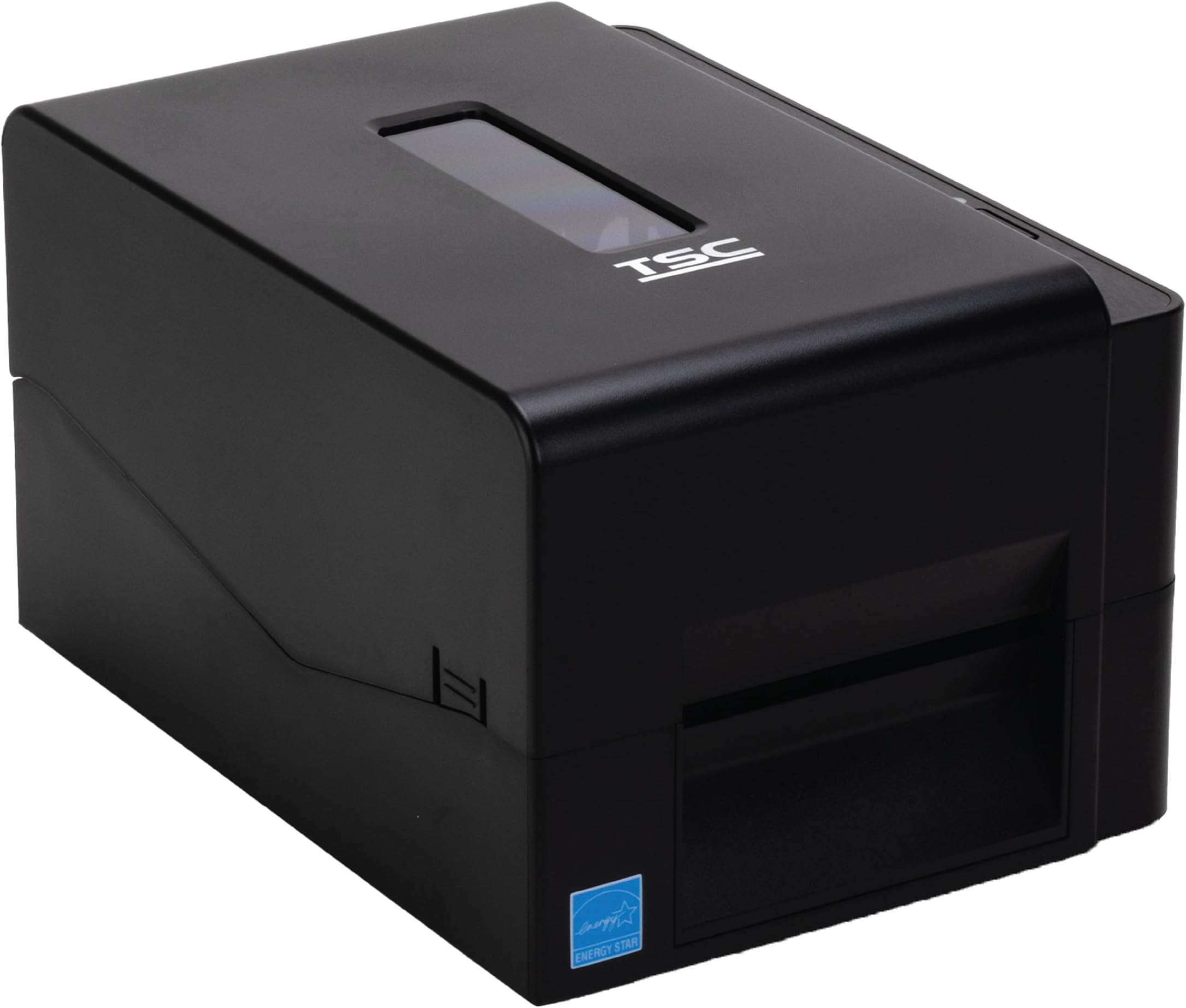

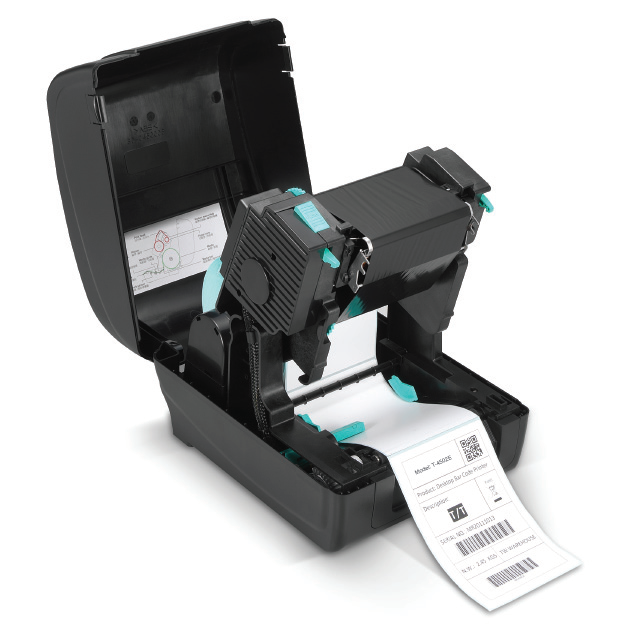

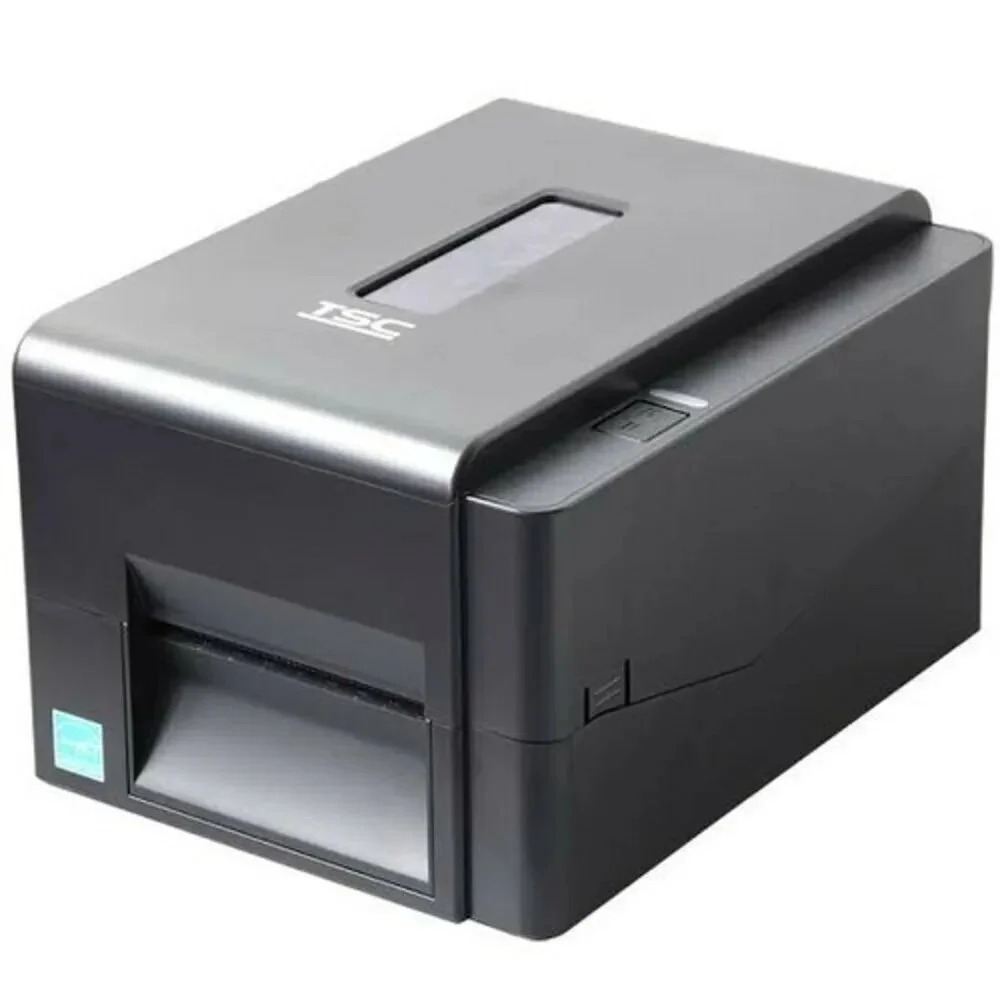

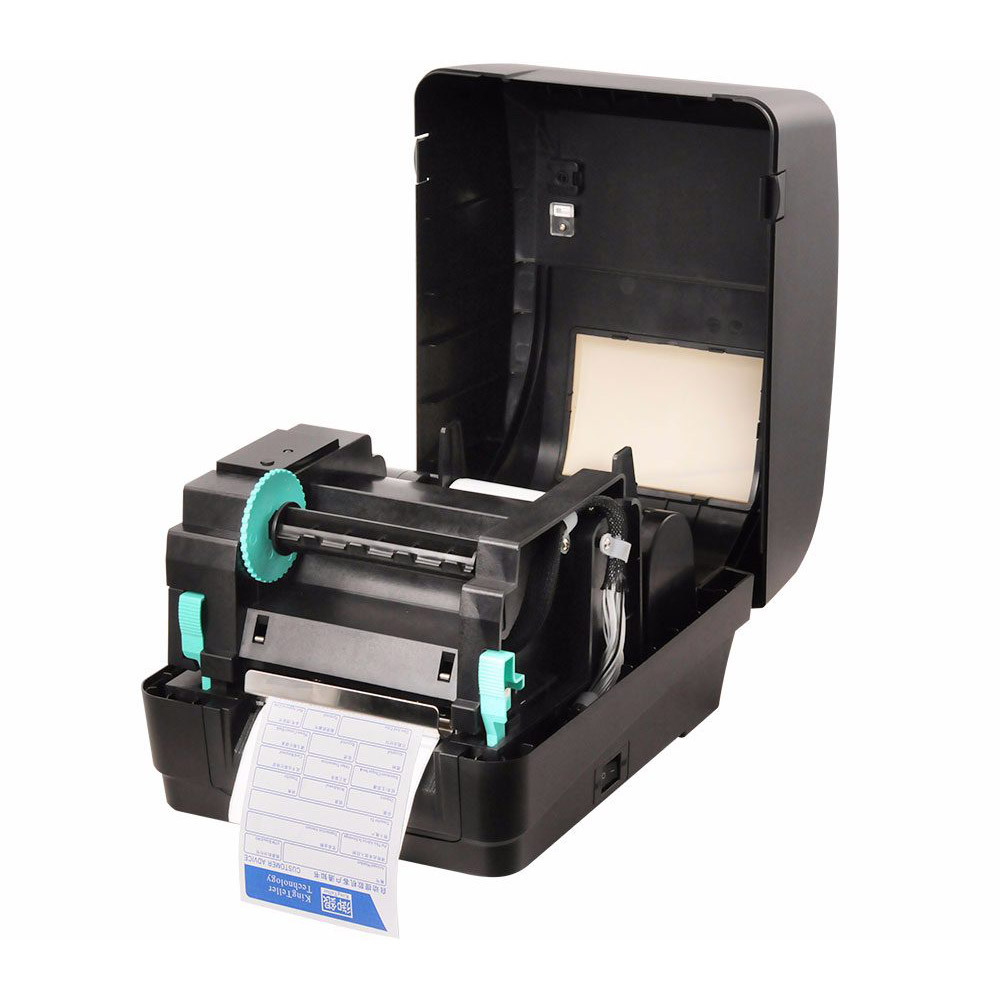

เครื่องปริ้นบาร์โค้ด TSC รุ่น TE210 รองรับการพิมพ์แบบ Direct Thermal และ Thermal Transfer

เครื่องปริ้นบาร์โค้ด รุ่น TE210 LAN

Brand : TSC

Model : TE210 (Port LAN)

Print Method : Direct Thermal & Thermal Transfer

Processor : 32-bit RISC CPU

Memory : 128 Flash Memory

64 MBSD RAM

Resolution : 8 dots/mm (203 DPI)

Print Speed : 152.4 mm (6") second

Print Width : Max 108 mm (4.25")

Print Length : Max 25,400 mm (1000")

Media : Label Roll Capacity : 127mm (5") OD

Media Type : Continuous, die-cut, black mark, fan-fold, notched (outside wound)

Media Width : 20 ~ 112 mm (0.8" ~ 4.4")

Media Thickness : 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)

Media Core diameter : 25.4 ~ 38 mm (1" ~ 1.5")

Label lenght : 5~ 25,400 mm (0.2" ~ 1000")

Ribbon : Ribbon width : 40mm - 110 mm (16" - 4.3")

Ribbon Long : 300 m long, max. OD 67 mm, 1" core (ink coated outside)

Ribbon Long : 110 m long, max. OD 40 mm, 0.5" core (ink coated outside)

**ใช้กับ Ribbon ขนาด : 110mm x 300m

Interface : USB 2.0

LAN 10/100 Mbps

RS 232

USB Host, For Scanner or PC Keyboard

Display Panel : 1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red)

Sensor : Transmissive gap sensor

Black mark reflective sensor (position adjustable)

Ribbon end sensor

Head open sensor

Realtime Clock

Buzzer

Font : Internal fonts

8 alpha-numeric bitmap fonts :

Monotype Imagee true type font engine with one CG Triumvirate Bold Condensed scalable font

Printer language : TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Barcode : 1D Bar Code

Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93 EAN13 EAN8, UPCA

UPCE EAN and UPC 2(5) digits add-on, Codabar, Postnet, MsI, MSI with check digit, PLESSEY, China post, ITF14 Code 11, TELEPEN, TELEPENN, PLANET, Code49,

Deutsche Post ldentcode, Deutsche Post Leitcode, LOGMARS



2D bar code

GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417



Font and barcode rotation : 0, 90, 180, 270 degree

Graphics : N/A

Enviroment : Operation : 5~ 400C, 25 ~ 85% non-condensing

Storage : -40~60c,10 ~ 90% non-condensing

Power Supply : External universal switching power supply

Input : AC 100-240V, 2.5A, 50-60Hz

Output : DC 24V, 2.5A, 60W

Package Contents : 1 x Windows labeling software CD disk

1 x Quick start guide

1 x USB cable

1 x Power cord

1 x External universal switching power supply

1 x 1" label spindle fixing tab x 2, 1.5" adapter x 2

1 x 1" ribbon spindle x 2 for 300M rilbbon

1 x 1" ribbon paper core
